Linha Schulz-Pistão (Medidas dos elementos filtrantes em mm) |
|
|
|
Compressores à pistão |
Diâmetro externo (A) |
Diâmetro interno (B) |
Altura(C) |
OBS.: |
|
|
|

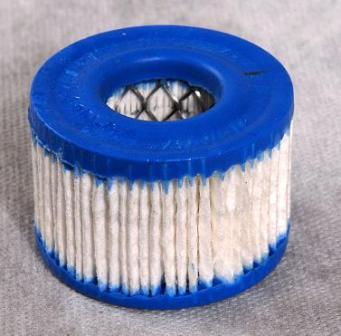

MS 2,6/ 5,2/ 8/ 10/ 15/ 3,6/ 7,2 UL (SCHULZ PEQUENO
|
46 |
21 |
32 |
|
|
|
|

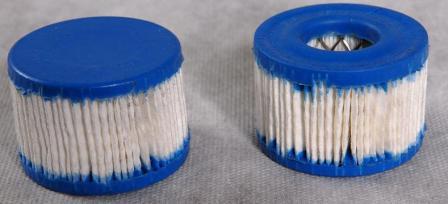

MS 2,6 AS/ MS3/ MS3,6/ MSI 10VL/ MSI 12,6 VL/MSI 5,2 VL/ MSV 10 VL (SCHULZ 2,6 NOVO)
|
46 |
21 |
32 |
Com um lado cego |
|
|
|

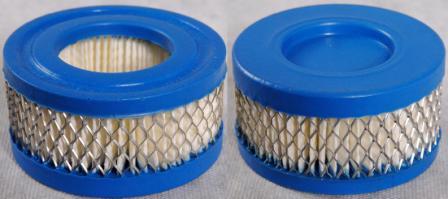

CSL 10BR/CSL 10 BR-AD/ CSL 10 BR- AD A/ CSL 15 BR/ CSL 15 BRG 30 MSL 15 MAX-CM
|
76 |
40 |
40 |
Com um lado cego |
|
|
|

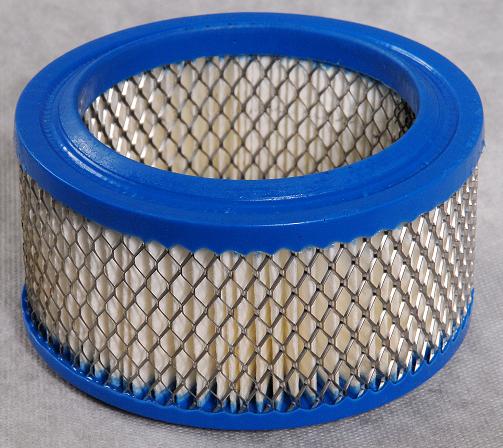

15 AP/ 20 APS/ 25/ 30/ 35/ 40 BPS/ 40 BPSA/ MSV 15 AP/ MSV 15 MAX/ MSV 20 APN/ MSV 20 APSA/ MSV 20 APSS/ MSV 20 MAX/ MSV 20 S/ MSV 25/ MSV 25 MAX/ MSV 26 MAX MSV 30 APSA/ MSV 35/ MSV 40 BPN/ MSV 40 S/ MSV 40 SA/ MSV 40 SS (SCHULZ MÉDIO- PRESSURE)
|
112 |
57 |
62 |
|
|
|
|

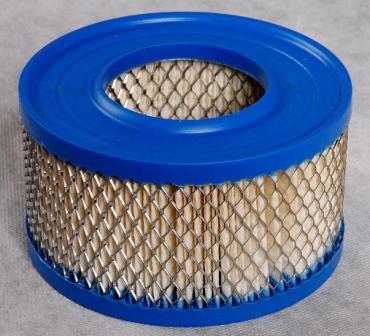

MSV 40 APSS/ MSV 40 APSA/ MSW 60 AP/ 60/ 72/ 90 AP/ MSV 120/ MSV 144/ MSV 60/ MSV 72/ MSW 120 AP/ MSW 180/ MSW 90 (SCHULZ GRANDE)
|
140 |
104 |
70 |
|
|
|
|

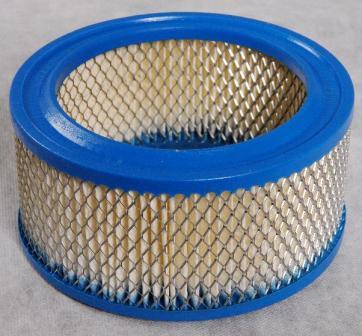

MSL 20 MAZ/ MSV 120/ MSV 144/ MSV 15 AP/ MSV 15 MAX/ MASV 20 APN MSV 20 APSA/ MSV 20 APSS/ MSV 20 MAX/ MSV 30/ MSV 30 APSA/ MSV 30 MAX/ MSV 35/ MSV 40 APSA/ MSV 40 BPN/ MSV 40 MAX/ MSV 40 S MSV 40 SA/ MSV 60/ MSV 72/ MSW 120 AP/ MSW 180/ MSW 60 AP/ MSW 60 MAX/ MSW 00/ TAW 20/ TR 15/ W 600/ W 800/ CA 2316/1 (CHIAPERINI)
|
111 |
82 |
62 |
|
